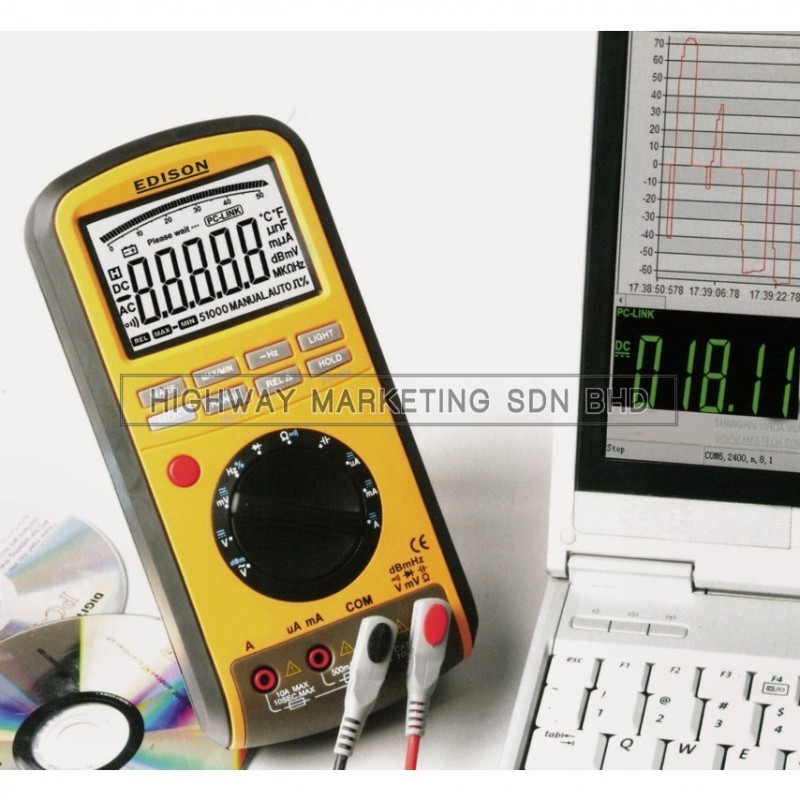

Edison EDI5163420K Auto Range High Accuracy Multimeter USB Interface

EDI5163420K

Auto Range Digital Multimeters

Within the Edison™ range of multimeters you will find direct reading multimeters and non-contact reading multimeters. Ideal for electrical troubleshooting and straightforward environmental testing in residential and commercial environments.

DAM100
Auto Range Hi-Accuracy Digital Multimeter with USB interface, ideal for electrical troubleshooting and straightforward maintenance, initial start-up testing and R and D.
Linear frequency: 5Hz to 200KHz.
Logic frequency: 5Hz to 2MHz.
Duty cycle: 5% to 95%.
Diode testing: 0 to 2.5V.
AC/DC voltage: 1000V.
AC/DC current: 10A.
Resistance: 50MW.
Capacitance: 5000mF.
Relative measurement function. Clear display with LED back light and data hold function auto power 'OFF' and low power indicator.
Digital display count: 50000.
Pack includes: digital multimeter, test probes, clamp-on trat leads, USB interface connection, CD rom 'PC-LINK' software (compatible with Windows 98ME, 2000, NT or XP), 6x 1.5V AAA batteries (installed), instruction manual, protective case with carry strap.
PC-LINK software features: measure graph, measure data record, simulate LCD display, analogue dial plate display, measure max/min display, sampling interva, graph export, measure data save.
Dimensions (W x D x H): 178 x 65 x 255mm.

EDI5163420K

Data sheet

Width
178mm
Length
255mm
Depth
65mm
Weight
1.018kg
