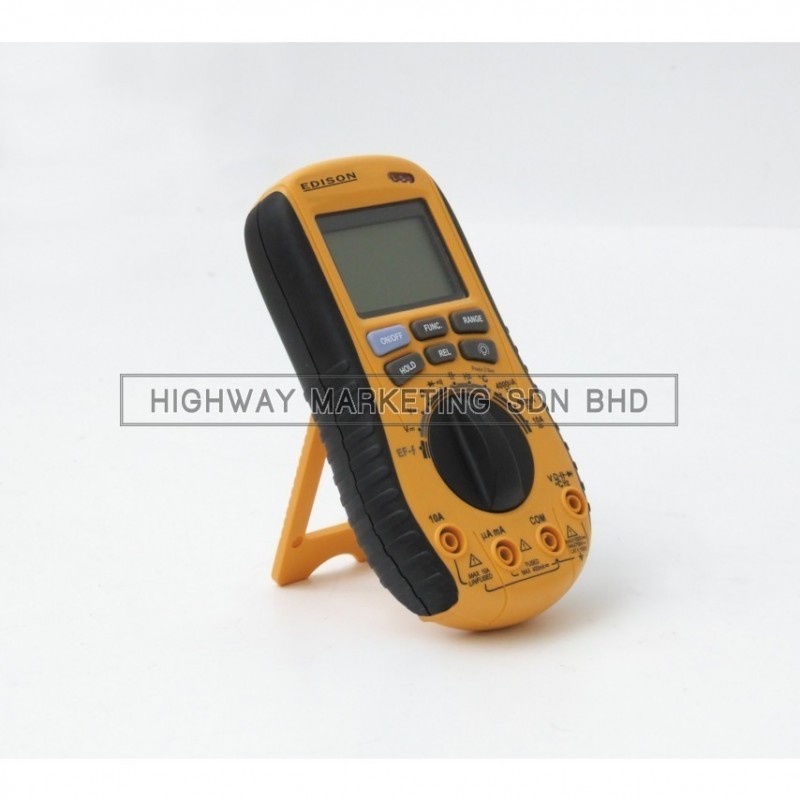

Edison EDI5163100K Auto Range Digital Multimeter 1000V DC 750V AC
  • Edison EDI5163100K Auto Range Digital Multimeter 1000V DC 750V AC
  • Edison EDI5163100K Auto Range Digital Multimeter 1000V DC 750V AC

Edison EDI5163100K Auto Range Digital Multimeter 1000V DC 750V AC

EDI5163100K

Auto Range Digital Multimeters

Within the Edison™ range of multimeters you will find direct reading multimeters and non-contact reading multimeters. Ideal for electrical troubleshooting and straightforward environmental testing in residential and commercial environments.

DAM075
The 2 in 1 digital multimeter is capable for the following tasks: electrical testing using test probes, no contact voltage detection and testing for wiring faults.
Testing temperature: -20 to 1000°C.
AC voltage: 750V.
DC voltage: 1000V.
AC/DC current: 10A.
Resistance: 40MW.
Capacitance: 200uF.
Relative measurement function. Diode testing facility. Clear display with LED back light and data hold function. Auto power OFF' and low power indicator.
Digital display count: 3999.
Pack includes: digital multimeter, test probes, temperature sensor probe, DC1.5V x3 AAA batteries (installed), instruction manual
Dimensions (W x D x H): 152 x 45 x 190mm.

EDI5163100K

Data sheet

Width
152mm
Length
190mm
Depth
45mm
Weight
416g
