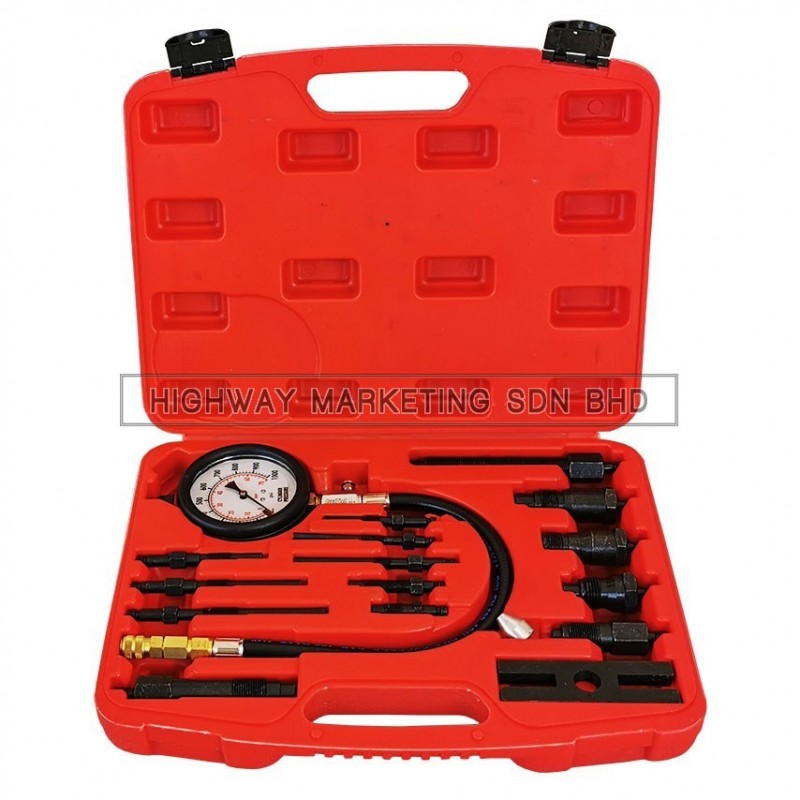

Dynatool DYN-10-3017 Diesel Engine Compression Tester
  • Dynatool DYN-10-3017 Diesel Engine Compression Tester

Dynatool DYN-10-3017 Diesel Engine Compression Tester

Dynatool DYN-10-3017 Diesel Engine Compression Tester

DYN-10-3017
  • This is generally the preferred test method, avoids damage to the injector and fuel system contamination.
  • Comprehensive Test Kit: Suits both direct and indirect injection diesel engines.
  • Suitable for diesel engines on truck, car, generators, and other machinery.
  • Built-in Pressure Relief Valve Enables Repeat Tests Without Dismantling
  • Quick release pull down coupler for a quick change between hoses and adapters
  • Will fit just about any truck or car
  • This compression testing set has fittings for replacing injectors and glow plugs
  • Application: BMW, MERCEDES-BENZ, CARBODIES, MITSUBISHI, CITROEN, NISSAN, DACIA, OPEL, DIAHATSU, PEUGEOT, FIAT, RENAULT, FORD, ROVER, HOLDEN, SEAT, ISUZU, TOYOTA, LAND ROVER, VAUXHALL, LEYLAND / DAF, VOLKSWAGEN, MAZDA, VOLVO…etc.

Feature:

  • Checks Engine Compression Under Cranking Conditions
  • Small Profile, Quick Coupling Adapters: For speed & security
  • Built-In Pressure Relief Valve: Enables repeat tests without dismantling
  • Flexible Hose (355mm) Gives Access To Restricted Plug & Injector Ports
  • Dual Scale 80mm Diameter Gauge 0 - 1000 Lb/In & 0 - 70 Bar

Include:

  • Glow plug adaptor 91mm M10×1.
  • Glow plug adaptor 119mm M10×1
  • Glow plug adaptor 135mm M10×1.25
  • Glow plug adaptor 118mm M22×1.5
  • Glow plug adaptor 113mm M10×1
  • Glow plug adaptor 102mm M10×1
  • Glow plug adaptor 83mm M10×1
  • Glow plug adaptor 47mm M10×1.25
  • Glow plug adaptor 64mm M10×1.25
  • Injector adaptor 88mm M24×1.5
  • Injector adaptor 73mm M22×1.5
  • Injector adaptor 63mm M24×2
  • Injector adaptor 75mm M20×1.5
  • Screw adaptor 160mm.
  • Dial gauge 80mm Dia
  • H fitting. Bleed valve
DYN-10-3017

Data sheet

Width
300mm
Length
390mm
Depth
90mm
Weight
3.20kg
