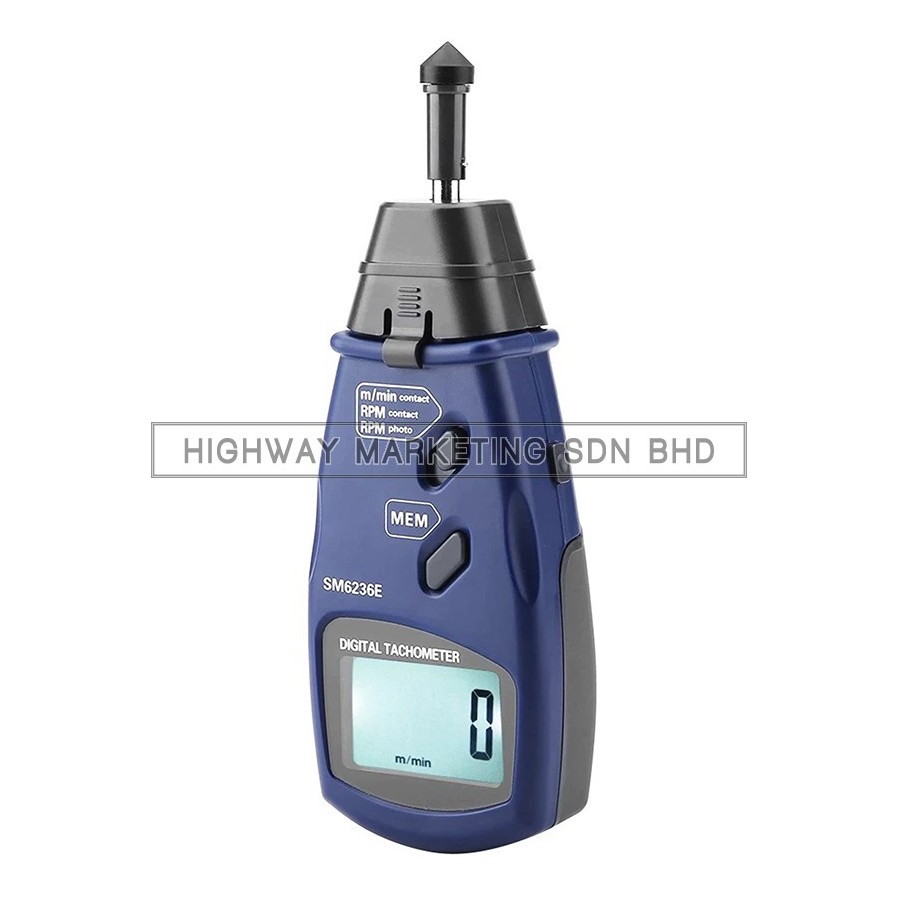

This item adopts the microcomputer (CPU) technique and junction laser technique for one instrument which combines Photo Tach (RPM) and Contact Tach (RPM, m/min).


Features:
1. Adopting advanced technologies to achieve contact or non-contact measurement of rotation speed and line speed.
2. Speed sensor with groove measures speed and length of wire, cable and rope conveniently.
3. Automatically store max value, min value and the last measurement value.
4. Contact accessory and photoelectric accessory can be converted mutually at any time to achieve multi-purpose use.
5. Automatically prompt when the voltage of power supply is lower than the specified value.
6. Large LCD screen for clear reading.
7. Wide measurement range and high resolution.

Specification:
Model: SM6236E
Measuring Range:
Photoelectric Tach: 2.5 ~ 99999RPM
Contact Tach: 0.5 ~ 19999RPM
Contact Line Speed: 0.05 ~ 1999.9m/min
Resolution:
Photoelectric Tach: 0.1RPM (2.5 ~ 999.9RPM), 1RPM(over 1000RPM)
Contact Tach: 0.1RPM(0.5 ~ 999.9RPM), 1RPM(over 1,000RPM)
Contact Line Speed: 0.01m/min(0.05 ~ 99.99m/min), 0.1m/min(over 100m/min)
Display: 5 digits 18mm backlight LCD
Accuracy: ±(0.05%+1 digit)
Sampling Time: 0.5 sec(over 60RPM)
Range Selection: Auto-Ranging
Memory: Max. value, Min. value, Last value. 96 data storage
Time Base: 6MHz Quartz Crystal
Detecting Distance: 50 to 500mm (Laser)
Battery: 3 x1.5V AA Batteries (NOT included)
Power Consumption: about 50mA
Color: Black
Size (L*W*H): 21*7.4*3.7cm / 8.27*2.91*1.46in
Weight: Approx. 436g/15.4oz

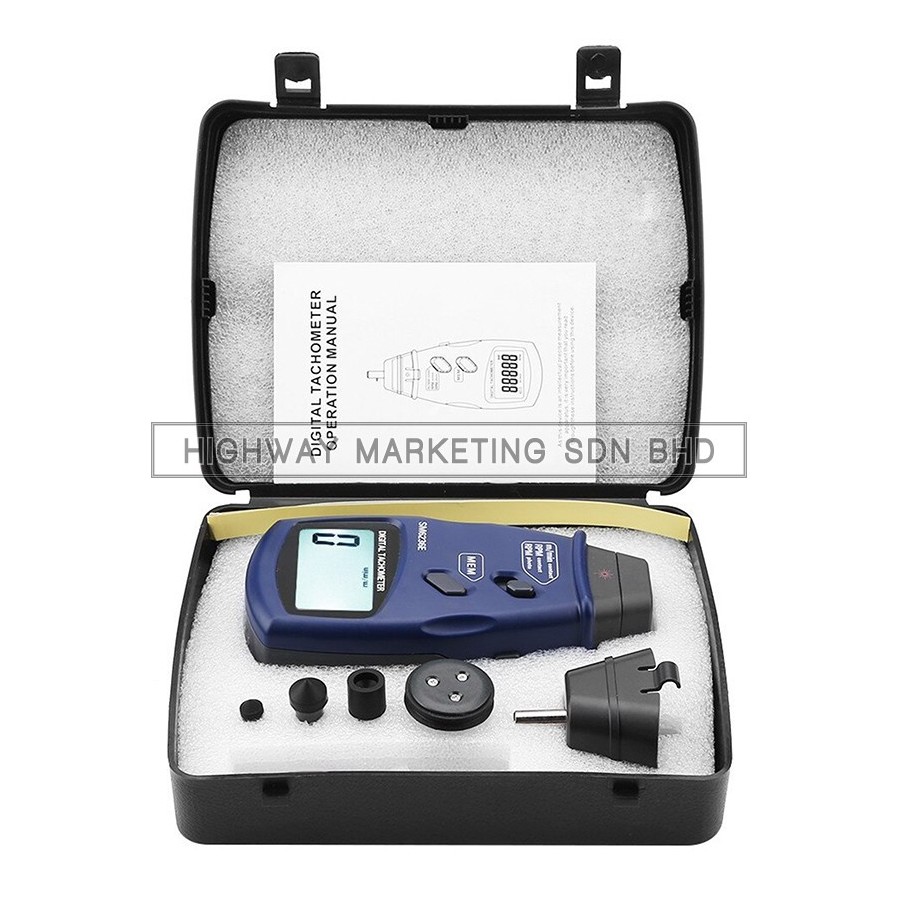

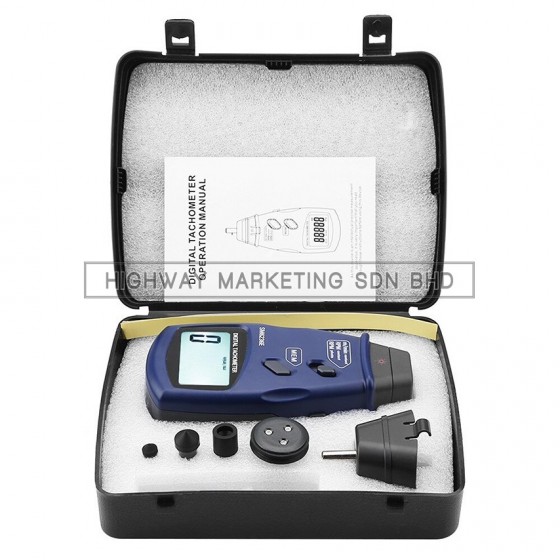

Package list:
1 * Tachometer
1 * User Manual
3 * Reflective Paper
1 * Screw
4 * Tach Accessories
1 * Photoelectric Tach Head
1 * Storage Case
