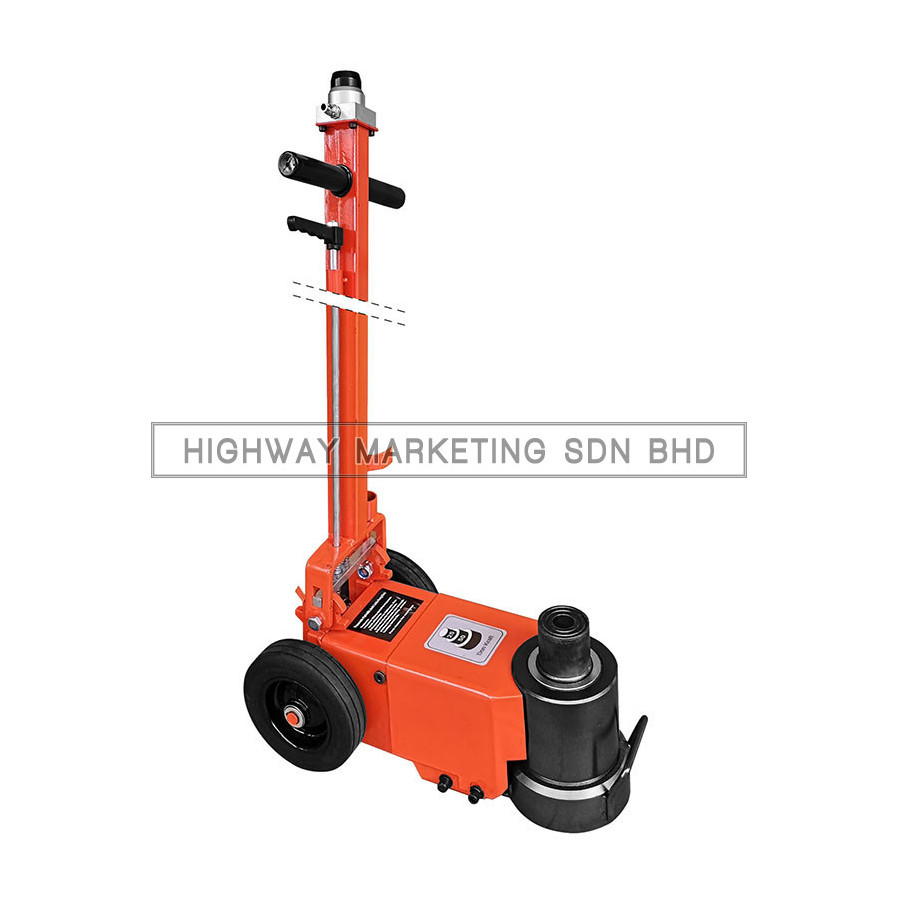

Ideal for lifting and servicing of heavy truck and heavy construction equipment. Use compressed air as its air source, air pump pushes the high pressure oil into oil cylinder, lift the piston rod and add the carrying strength. Extension screw height can be adjusted a little if necessary. Different adapters widen the adjusted range. Safety overload system prevents jack from being used beyond its rated capacity. Rubber wheel and handle grip for easy transportation, positioning and high stability.
Order Code | DYP-20-0380 | DYP-20-0381 | ||
Capacity | 50/25T | 80/40T | ||
Air Pressure | 0.8-1.2Mpa | 0.8-1.2Mpa | ||
Min Height | 210mm | 210mm | ||
Rated Pressure | 31.5Mpa | 31.5Mpa | ||
Weight | 65kg | 90kg | ||
50T | 25T | 80T | 40T | |
Lift Height | 97mm | 195mm | 97mm | 195mm |
Extension Height | 38mm | 60mm | 38mm | 60mm |
