SKC 801 M9 x 1.00 Metric Hand Tap

SKC 801 M9 x

Description
Product Details

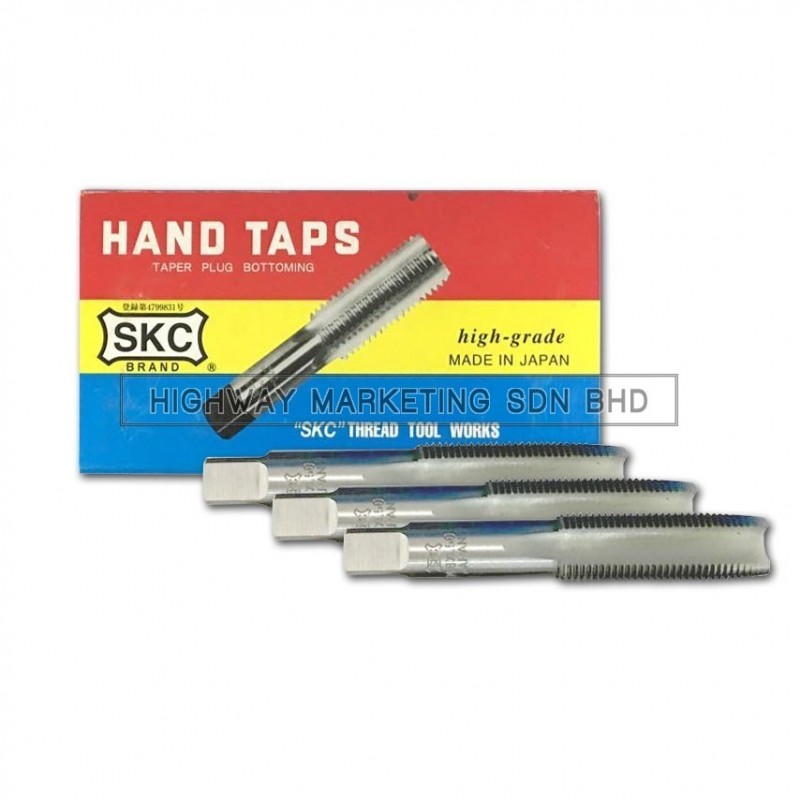

SKC Hand Taps are the general purpose option for thread cutting in most materials including steel, some stainless steels, cast irons and non-ferrous materials such as Aluminium, Brass and many others.

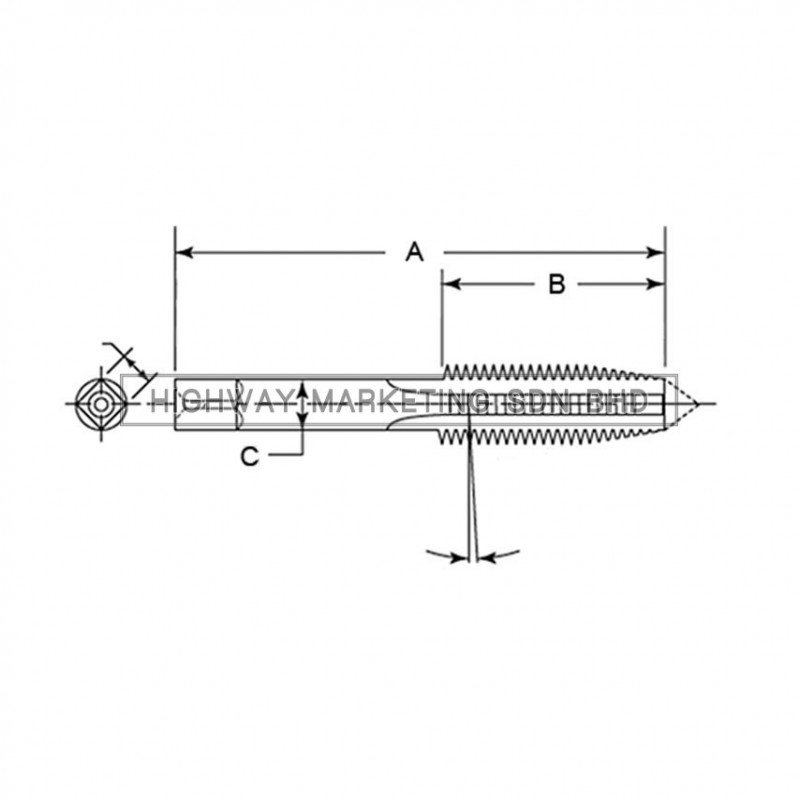

Size	Pitch(mm)	Length		Shank Diameter
Size	Pitch(mm)	A(mm)	B(mm)	Shank Diameter
M2	0.40	40	15	9
M2.5	0.45	44	16	9
M3	0.50	46	18	4
M4	0.70	52	20	5
M5	0.80	60	22	5.5
M6	0.75	62	24	6
M6	1.00	62	24	6
M7	1.00	65	26	6.2
M8	1.00	70	30	6.2
M8	1.25	70	30	6.2
M8	1.20	70	30	6.2
M9	1.00	72	30	7
M9	1.25	72	30	7
M10	1.00	75	32	7
M10	1.25	75	32	7
M10	1.50	75	32	7
M11	1.00	80	38	8
M11	1.50	80	38	8
M12	1.00	82	38	8.5
M12	1.25	82	38	8.5
M12	1.50	82	38	8.5
M12	1.75	82	38	8.5
M13	1.50	82	38	9.3
M14	1.25	88	42	10.5
M14	1.50	88	42	10.5
M14	1.75	88	42	10.5
M14	2.00	88	42	10.5
M15	1.50	95	45	12.5
M16	1.00	95	45	12.5
M16	1.50	95	45	12.5
M16	1.75	95	45	12.5
M16	2.00	95	45	12.5
M16	2.50	95	45	12.5
M18	1.00	100	48	14
M18	1.25	100	48	14
M18	1.50	100	48	14
M18	2.00	100	48	14
M18	2.50	100	48	14
M20	1.00	105	50	15
M20	1.50	105	50	15
M20	2.00	105	50	15
M20	2.50	105	50	15
M20	3.00	105	50	15
M22	1.50	115	55	17
M22	2.00	115	55	17
M22	2.50	155	55	17
M22	3.00	155	55	17
M24	1.00	120	58	19
M24	2.00	120	58	19
M24	2.50	120	58	19
M24	3.00	120	58	19
M25	2.50	120	58	19
M25	3.00	120	58	19
M26	3.00	130	63	20
M28	3.00	138	65	22.5
M30	3.00	135	65	23
