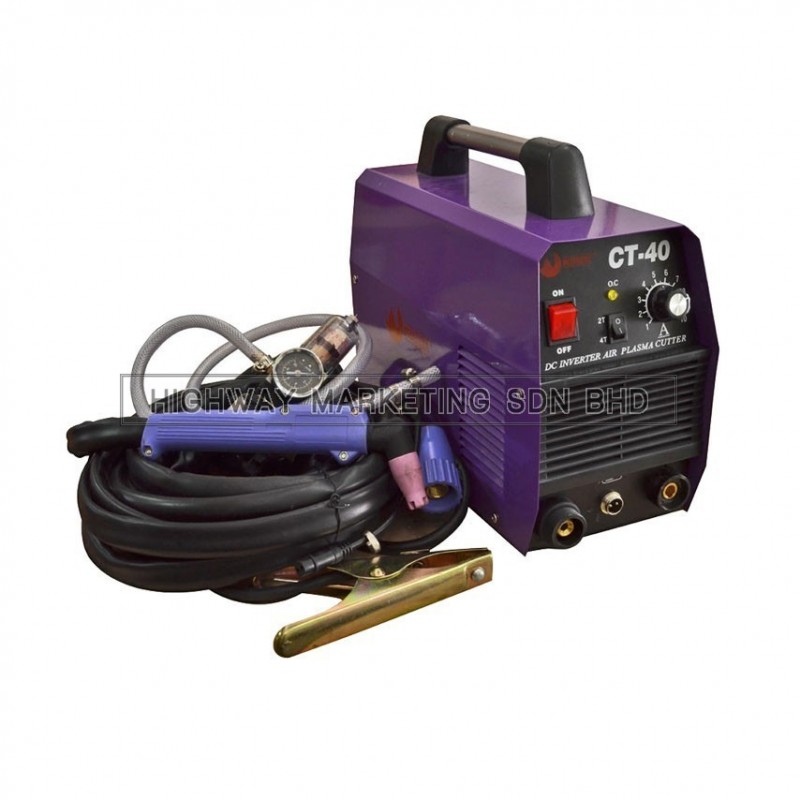

Weldone Cut-40 Plasma Cutting Machine
  • Weldone Cut-40 Plasma Cutting Machine

Weldone Cut-40 Plasma Cutting Machine

Weldone

Weldone Cut-40 Plasma Cutting Machine

Weldone Cut-40 Plasma Cutting Machine

Weldone Cut-40

Weldone

Increase cutting capacity. Cutting speed increased 1.8 times compared with oxy-acetylence cutting. Cutting of the thick steel plate is very convenient, fast and economic. Can cut carbon steel, stainless steel, alloy steel, copper, aluminium and etc. Easy operation, flat and smooth cutting. Using the non-contact arc cutting. Optional professional cutting torch, improve cutting ability.

Model CUT-40 CUT-70 CUT-120
Input Voltage (V) 1PH-240V 50/60Hz 3PH 415V 50/60Hz 3PH 415V 50/60Hz
Rated Input Power Capacity (KVA) 6 7.9 15
No-Load Voltage (V) 240 293 330
Output Current Range (A) 20-40 30-60 40-100
Rated Output Voltage (V) 88-96 92-104 96-120
Duty Cycle (%) 60 60 60
Efficiency (%) 85 85 85
Power Factor (Cos Ø) 0.76 0.93 0.93
Max. Cutting Thickness (mm) 12 20 40
Compressed Air Pressure (kg/cm2) 3.0-5.0 3.0-5.0 3.0-5.0
Post Flow Time (kg) 0-5 0-5 0-5
Insulation Class F F F
Gross Weight (kg) 8 21 36
Dimension (mm) 370 x 140 x 270 470 x 210 x 370 600 x 300 x 520
Protection Class IP23 IP23 IP23

Data sheet

Weight
8.00kg
