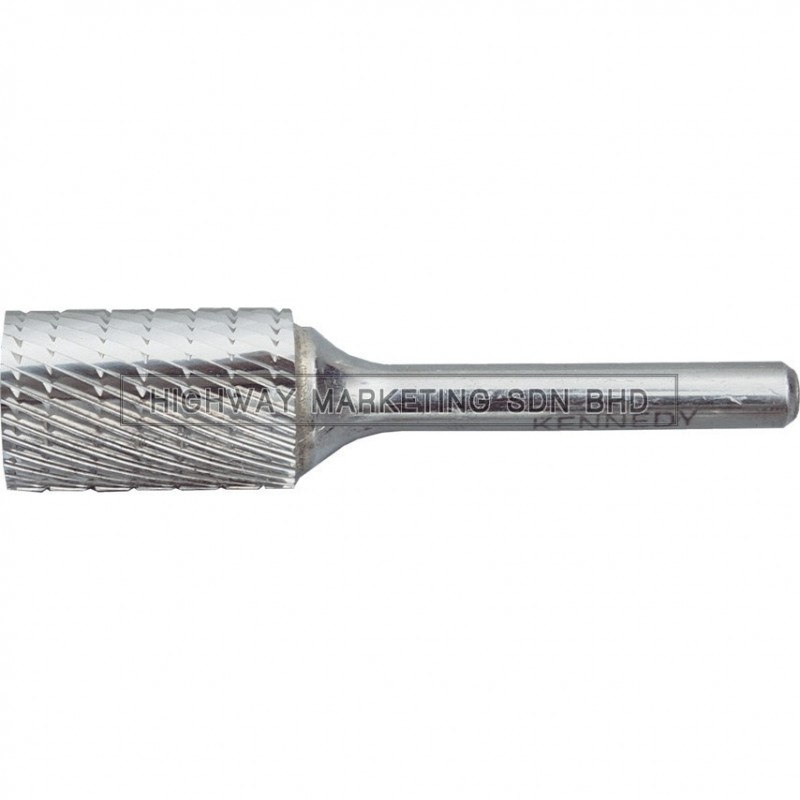

Kennedy KEN2100740K 10x20mm Cylindrical Plain End Carbide Burr Cut 9
  • Kennedy KEN2100740K 10x20mm Cylindrical Plain End Carbide Burr Cut 9

Kennedy KEN2100740K 10x20mm Cylindrical Plain End Carbide Burr Cut 9

Kennedy KEN2100740K 10x20mm Cylindrical Plain End Carbide Burr Cut 9

Kennedy KEN2100740K 10x20mm Cylindrical Plain End Carbide Burr Cut 9

Kennedy

Carbide Burrs - Cylindrical Plain End Cutting

Cylindrical Plain End Cutting
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.

Cut Numbers:

Cut 3 - Rapid Cut
For use on softer non-ferrous and plastic materials, i.e. aluminium, fibreglass, plastics, hard rubber and zinc alloy.
Cut 6 - Double Cut
Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use.
Cut 9 - Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.

Suitable for deburring and polishing of cast iron, cast steel, carbon steel, alloy steel and stainless steel etc.
up to HRC65 hardness.
Please note:
Workpiece and tools should always be steady and well supported.
Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal at high rpm's 'LOW FEED - HIGH SPEED'.
Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used.
Always ensure that the tool is rated to the recommended operating speed of the burr.

KEN2100740K

Data sheet

Cut No.
9
Cut Type
Chipbreaker
Head Diameter
10mm
Head Length
20mm
Head Shape
Cylindrical Plain Cut
Shank Diameter
6mm
Weight
200g
