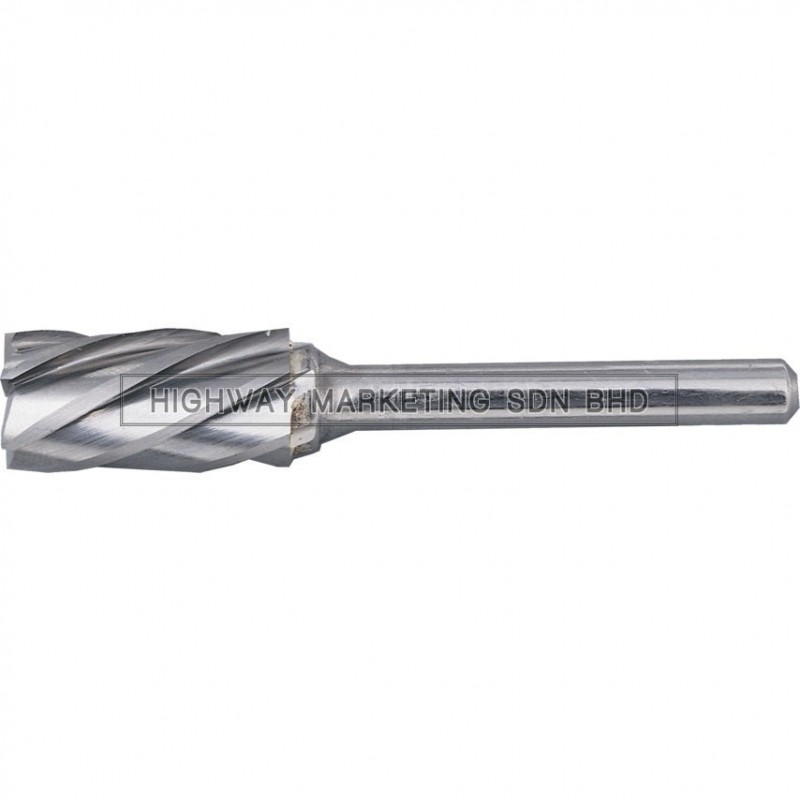

Kennedy KEN2100220K 10x20mm Cylindrical End Cut Carbide Burr Cut 3 View larger

Kennedy KEN2100220K 10x20mm Cylindrical End Cut Carbide Burr Cut 3

Kennedy

KEN2100220K

New product

Kennedy KEN2100220K 10x20mm Cylindrical End Cut Carbide Burr Cut 3

More details

Pre-Order

By buying this product you can collect up to 9 loyalty points. Your cart will total 9 loyalty points that can be converted into a voucher of RM1.80.


RM98.00 tax excl.

Carbide Burrs - Cylindrical-End Cutting

Cylindrical-End Cutting
All sizes are nominal. Sizes marked * are 3mm shank, all others are 6mm shank.

Cut Numbers:

Cut 3 - Rapid Cut
For use on softer non-ferrous and plastic materials, i.e. aluminium, fibreglass, plastics, hard rubber and zinc alloy.
Cut 6 - Double Cut
Crosscut and double cut to improve control and chipbreaks. Manufactured from high grade tungsten carbide for general-purpose use.
Cut 9 - Chipbreaker
Chipbreaker fast stock removal for improved control and reduced chips for use on hard materials, i.e. steel alloy 50RC, 60RC, carbon and cast iron.

Suitable for deburring and polishing of cast iron, cast steel, carbon steel, alloy steel and stainless steel etc.
up to HRC65 hardness.
Please note:
Workpiece and tools should always be steady and well supported.
Carbide burrs are not suitable for 'milling' large amounts of material, they are for light stock removal at high rpm's 'LOW FEED - HIGH SPEED'.
Always ensure that at least 70% of the shank length is clamped by the collet or chuck of the tool being used.
Always ensure that the tool is rated to the recommended operating speed of the burr.

Cut No. 3
Cut Type Rapid Cut
Head Diameter 10mm
Head Length 20mm
Head Shape Cylindrical End Cut
Shank Diameter 6mm
Weight 200g
