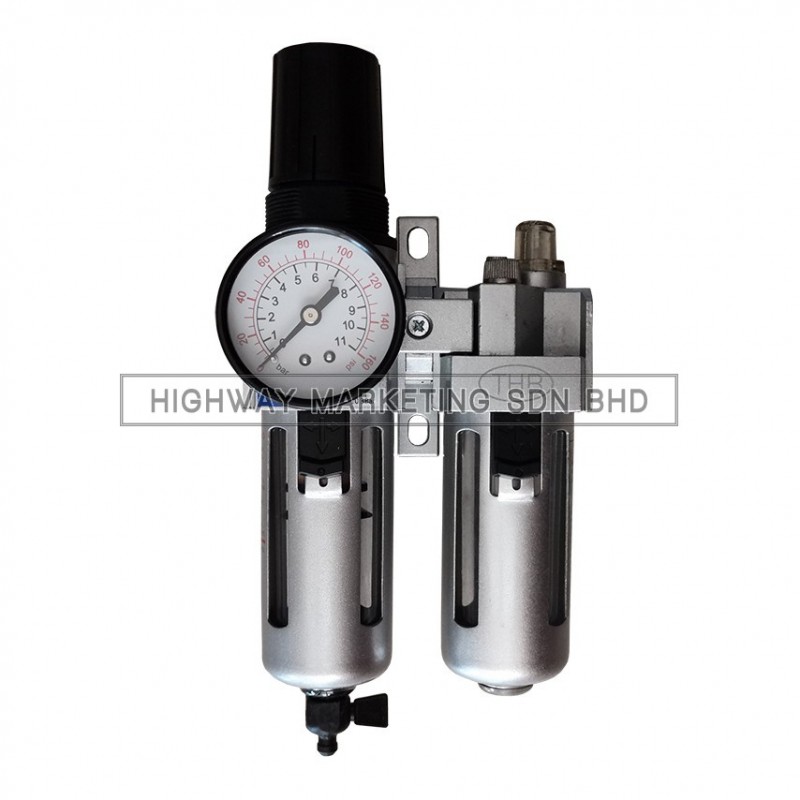

THB FRL50 Air Control Unit Air Filter Regulator/Lubricator
  • THB FRL50 Air Control Unit Air Filter Regulator/Lubricator

THB FRL50 Air Control Unit Air Filter Regulator/Lubricator

THB FRL50 Air Control Unit Air Filter Regulator/Lubricator

THB FRL50 Air

Size :

In FRL combination (air preparation) category, Hui Bao (THB) provides five categories products which are all essential parts to an efficient air system. The five categories product comprise –



Filter – Filter water / vapor in order to extend the service life of air tool / air system.
Regulator --- can make sure the output/working pressure is in a certain level.
Lubricator --- Supply lubricator to extend the service life of air tool / air system.
Air cleaner / dryer --- Filter oil / mist and dry air for particular application such as paint spray gun.
Auto Drains --- Collecting drops from mechanical operation.


In terms of product range for FRL, we have 1/8” ~ 1” port sizes, which can fulfill requirements from the consumer level through industrial applications.

TYPE
DESCRIPTION
FRL502 FRL503 FRL504
Port Size (PT, NPT) 1/4” 3/8” 1/2”
Filter Element
Proof Input Pressure (PSI) 215
Proof Output Pressure (PSI) 145
Max Flow (l/min) 2200 3000 3100
Operating Temperature Range ( ℃ ) 5℃ ~  60℃
Drain Capacity (ml) 55 ml
Oil Capacity (ml) 80 ml
Recommendable Lubricants ISO VG-32
MORE OPTIONS Air Filter F502 F503 F504
Regulator R501 R503 R504
Air Filter  + Regulator FR502 FR503 FR504
Lubricator L502 L503 L504
